首頁 》 產品展示 》 傳導.管路 》 PFA管路系統

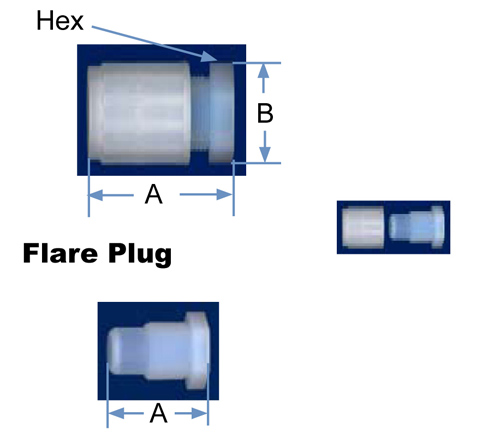

| PFA Flare Plug Only Part No. | Tube O.D. | A | Hex | PFA Flare Plug & Nut Part No. | A | B | Hex |
| FP4 | 1/4 | 1.25 | 5/8 | FP4N-1 | 1.47 | .73 | 5/8 |
| FP6 | 3/8 | 1.34 | 13/16 | FP6N-1 | 1.57 | .85 | 13/16 |
| FP8 | 1/2 | 1.43 | 15/16 | FP8N-1 | 1.67 | 1.00 | 15/16 |
| FP12 | 3/4 | 1.58 | 1-3/16 | FP12N-1 | 1.79 | 1.32 | 1-3/16 |
| FP16 | 1 | 1.75 | 1-7/16 | FP16N-1 | 2.01 | 1.76 | 1-7/16 |
