| 型號 | 尺寸 | 規格 | 材質 | 墊座 | O環 | 蝶片 | 接口 |
| VP-840 | 2"~24" | ANSI,JIS,DIN | PVC | EPDM,FPM | EPDM,FPM | PP | Flanged |
| VP-841 | 2"~24" | ANSI,JIS,DIN | CPVC | EPDM,FPM | EPDM,FPM | CPVC | Flanged |
| VP-843 | 2"~24" | ANSI,JIS,DIN | PVDF | EPDM,FPM | EPDM,FPM | PVDF | Flanged |
| VP-844 | 2"~24" | ANSI,JIS,DIN | PP | EPDM,FPM | EPDM,FPM | PP | Flanged |

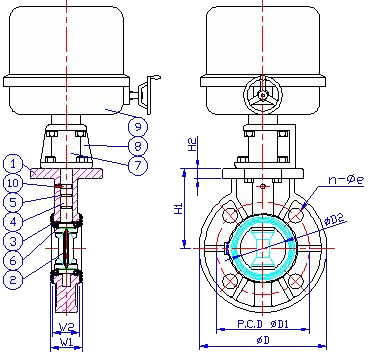

| NO. | PART | MATERIAL | Q'TY |
| 1 | 本體(BODY) | UPVC,CPVC,PP,PVDF | 1 |
| 2 | 閥門(DISC) | CPVC,PP,PVDF | 1 |
| 3 | 墊座(SEAT SEAL) | EPDM,FPM | 1 |
| 4 | 中心柱(STEM) | SUS 410 | 1 |
| 5 | O環(O-RING) | EPDM,FPM | 2 |
| 6 | O環(O-RING) | EPDM,FPM | 2 |
| 7 | 連接頭(COUPLING) | SUS | 1 |
| 8 | 固定架(MOUNTING PAD) | SUS | 1 |
| 9 | 電動箱(ELECTRIC ACTIATPR) | ALUMINUM ALLOY ENCLOSURE | 1 |
| 10 | 定位銷(PIN) | SUS | 1 |
|
SIZE NOM |
2" (50 mm) |
2-1/2" (65 mm) |
3" (80 mm) |
4" (100 mm) |
5" (125 mm) |
6" (150 mm) |
8" (200 mm) |
10" (250 mm) |
12" (300 mm) |
14" (350 mm) |
16" (400 mm) |
18" (450 mm) |
20" (500 mm) |
24" (600 mm) |
|
| JIS | ?D1 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 | 445 | 510 | 565 | 620 | 730 |
| n-?e | 4-19 | 4-19 | 8-19 | 8-19 | 8-23 | 8-23 | 12-23 | 12-22 | 16-25 | 16-25 | 16-27 | 20-27 | 20-27 | 24-33 | |
| ANSI | ?D1 | 121 | 140 | 152 | 191 | 216 | 241 | 298 | 362 | 432 | 476 | 540 | 578 | 635 | 750 |
| n-?e | 4-19 | 4-19 | 4-19 | 8-19 | 8-18 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 | |
| DIN | ?D1 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | 460 | 515 | 565 | 620 | 725 |
| n-?e | 4-18 | 4-18 | 8-18 | 8-18 | 8-18 | 8-22 | 8-22 | 12-22 | 12-22 | 16-22 | 16-27 | 20-27 | 20-27 | 20-30 | |
| ?D | 165 | 185 | 200 | 229 | 257 | 285 | 343 | 411 | 490 | 530 | 600 | 630 | 696 | 813 | |
| ?D2 | 56.5 | 69.5 | 79.5 | 102.5 | 130 | 153 | 203 | 255 | 309.5 | 355 | 397.5 | 452.5 | 500 | 602.5 | |
| H1 | 103 | 113 | 115 | 135.5 | 165 | 177 | 210 | 242 | 302 | 300 | 318 | 370 | 410 | 480 | |
| H2 | 13 | 13 | 13 | 13 | 15 | 19 | 21 | 22 | 26 | 25.5 | 32 | 35 | 34 | 43 | |
| W1 | 42.5 | 46 | 46 | 56 | 69 | 72 | 85 | 109 | 133 | 127 | 166.4 | 179 | 189.5 | 210 | |
| W2 | 34.6 | 37 | 37 | 47 | 57 | 62 | 69 | 95.5 | 116.5 | 113 | 160 | 171 | 180 | 201 | |
