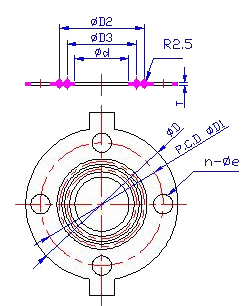

| 型號 | 尺寸 | 規格 | 材質 |
| VP-289 | 1/2"~24" | ANSI, JIS, DIN | EPDM, NBR, FPM |
|
SIZE NOM |
1/ 2" (15 m m) |
3/ 4" (20 m m) |
1" (25 m m) |
1-1 /4" (32 m m) |
1-1 /2" (40 m m) |
2" (50 m m) |
2-1 /2" (65 m m) |
3" (80 m m) |
4" (1 00 mm) |
5" (125 m m) |
6" (1 50 m m) |
8" (2 00 m m) |
10" (2 50 mm) |
12" (3 00 m m) |
14" (3 50 m m) |
16" (4 00 m m) |
18" (4 50 m m) |
20" (5 00 m m) |
24" (6 00 m m) |
|
| JIS | ?D | 93 | 98 | 123 | 133 | 138 | 153 | 173 | 183 | 208 | 248 | 278 | 328 | 398 | 443 | 485 | 560 | - | - | - |
| ?D1 | 70 | 75 | 90 | 100 | 105 | 120 | 140 | 150 | 175 | 210 | 240 | 290 | 355 | 400 | 445 | 510 | - | - | - | |
| ?D2 | 41 | 47 | 53 | 65 | 69 | 83 | 101 | 112 | 138 | 166 | 190 | 247 | 306 | 352 | 405 | 482 | - | - | - | |
| ?D3 | 26 | 32 | 38 | 50 | 54 | 68 | 86 | 98 | 120 | 145 | 168 | 216 | 270 | 324 | 380 | 452 | - | - | - | |
| ?d | 18 | 22 | 30 | 37 | 43 | 54 | 69 | 80 | 102 | 127 | 150 | 198 | 249 | 300 | 350 | 400 | - | - | - | |
|
n- ?e |
4- 15 |
4- 15 |
4- 19 |
4- 19 |
4- 19 |
4- 19 |
4- 19 |
8- 19 |
8- 19 |
8- 23 |
8- 23 |
12- 23 |
12- 22 |
16- 25 |
16- 25 |
16- 27 |
- | - | - | |
| T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | - | - | |
|
AN SI |
?D |
86 .36 |
96 .52 |
10 6. 68 |
11 4.3 |
124 .4 |
14 9. 86 |
17 5. 2 |
18 7. 96 |
22 6. 06 |
25 1. 46 |
27 6. 86 |
34 0. 36 |
40 3. 86 |
48 0. 06 |
530 | 595 | 630 | 692 | 800 |
| ?D1 | 61 | 70 | 79 | 89 | 98 | 121 | 140 | 152 | 191 | 216 | 241 | 298 | 362 | 432 | 476 | 540 | 578 | 635 | 749 | |
| ?D2 |
40 .64 |
48 .26 |
53 .34 |
66 .04 |
68 .55 |
83 .82 |
10 1.6 |
111 .76 |
137 .16 |
16 5.1 |
19 0.5 |
246 .38 |
307 .34 |
356 .06 |
405 | 482 | 510 | 566 | 674 | |
| ?D3 |
25 .4 |
33 .02 |
38 .1 |
50 .8 |
53 .34 |
68. 58 |
86. 36 |
99. 06 |
119 .38 |
144 .78 |
167 .64 |
215 .9 |
269 .24 |
32 5.2 |
380 | 452 | 472 | 535 | 644 | |
| ?d |
17. 78 |
22. 86 |
30. 48 |
38 .1 |
43. 18 |
53 .34 |
68. 58 |
81 .28 |
10 1.6 |
12 7 |
148 .86 |
198 .12 |
248 .92 |
299 .72 |
35 0 |
40 0 |
45 0 |
50 0 |
60 0 |
|
| n-?e | 4-16 | 4-16 | 4-16 | 4-16 | 4-16 | 4-19 | 4-19 | 4-19 | 8-19 | 8-18 | 8-22 | 8-22 | 12-25 | 12-25 | 12-29 | 16-29 | 16-32 | 20-32 | 20-35 | |
| T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 5 | 5 | 5 | |
| DIN | ?D | 93 | 103 | 113 | 133 | 148 | 163 | 183 | 198 | 218 | 248 | 283 | 338 | 393 | 443 | - | - | - | - | - |
| ?D1 | 65 | 75 | 85 | 100 | 110 | 125 | 145 | 160 | 180 | 210 | 240 | 295 | 350 | 400 | - | - | - | - | - | |
| ?D2 | 41 | 47 | 53 | 65 | 69 | 83 | 101 | 112 | 138 | 166 | 190 | 247 | 306 | 352 | - | - | - | - | - | |
| ?D3 | 26 | 32 | 38 | 50 | 54 | 68 | 86 | 98 | 120 | 145 | 168 | 216 | 270 | 324 | - | - | - | - | - | |
| ?d | 18 | 22 | 30 | 37 | 43 | 54 | 69 | 80 | 102 | 127 | 150 | 198 | 249 | 300 | - | - | - | - | - | |
|
n- ?e |
4- 14 |
4- 14 |
4- 14 |
4- 18 |
4- 18 |
4- 18 |
4- 18 |
8- 18 |
8- 18 |
8- 18 |
8- 22 |
8- 22 |
12- 22 |
12- 22 |
- | - | - | - | - | |
| T | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | 3 | - | - | - | - | - | |
