PFA Part No. |
PVDF Part No. |
Tube O.D. |
NPT Size |

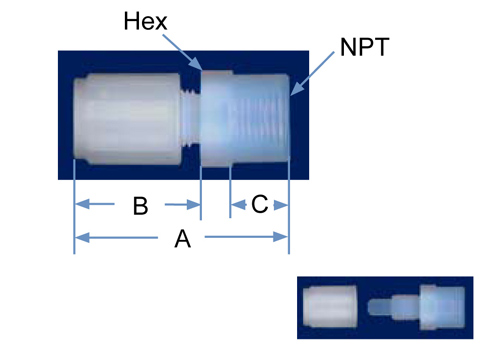

Orifice | A | B | C | Hex |
| FC4-2N-1 | FC4-2 | 1/4 | 1/8 | .15 | 2.10 |
1.18 |
.63
|
5/8 |
| FC4-4N-1 | FC4-4 | 1/4 | 1/4 | .15 | 2.10 | 1.18 | .63 | 3/4 |
| FC4-6N-1 | FC4-6 | 1/4 | 3/8 | .15 | 2.10 | 1.18 | .63 | 15/16 |
| FC4-8N-1 |
|
1/4 | 1/2 | .15 | 2.10 | 1.18 | .63 | 1-1/8 |
| FC6-4N-1 | FC6-4 | 3/8 | 1/4 | .25 | 2.07 | 1.28 | .63 | 3/4 |
| FC6-6N-1 | FC6-6 | 3/8 | 3/8 | .25 | 2.20 | 1.28 | .63 | 15/16 |
| FC6-8N-1 | FC6-8 | 3/8 | 1/2 | .25 | 2.20 | 1.28 | .63 | 1-1/8 |
| FC8-4N-1 |
|
1/2 | 1/4 | .38 | 2.20 | 1.38 | .63 | 3/4 |
| FC8-6N-1 | FC8-6 | 1/2 | 3/8 | .38 | 2.20 | 1.38 | .63 | 15/16 |
| FC8-8N-1 | FC8-8 | 1/2 | 1/2 | .38 | 2.20 | 1.38 | .63 | 1-1/8 |
| FC8-12N-1 | FC8-12 | 1/2 | 3/4 | .38 | 2.34 | 1.38 | .67 | 1-3/8 |
| FC8-16N-1 |
|
1/2 | 1 | .38 | 2.52 | 1.38 | .85 | 1-5/8 |
| FC12-8N-1 | FC12-8 | 3/4 | 1/2 | .63 | 2.42 | 1.50 | .63 | 1-1/8 |
| FC12-12N-1 | FC12-12 | 3/4 | 3/4 | .63 | 2.46 | 1.50 | .67 | 1-3/8 |
| FC12-16N-1 | 3/4 | 1 | .63 | 2.64 | 1.50 | .85 | 1-5/8 | |
| FC16-16N-1 | FC16-16 | 1 | 1 | .88 | 2.90 | 1.75 | .85 | 1-5/8 |
